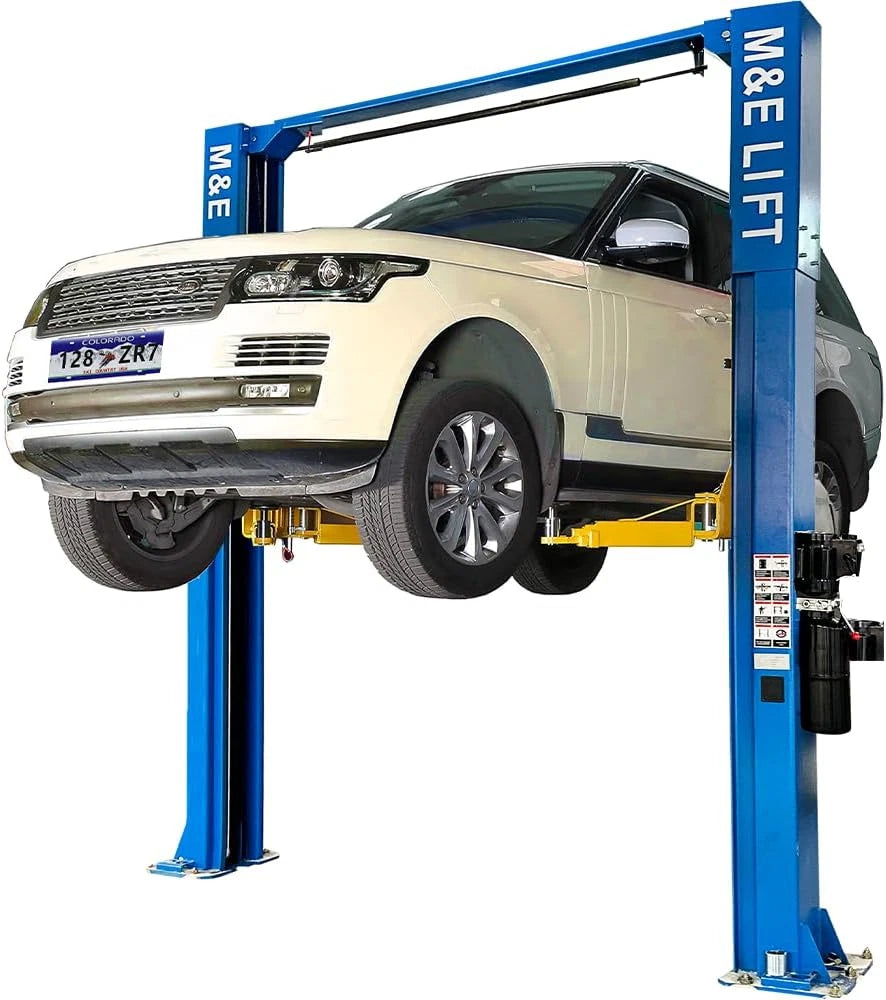

ME 2 Post Lift 11000lbs Two Post Lift Auto Lift Car Lift Hoist Equipment
Regular price $988.00ME 2 Post Lift 11000lbs – Heavy Duty Auto Lift & Car Hoist Equipment
Searching for a commercial-grade two post lift that delivers reliable performance for daily auto repair work? The ME 2 Post Lift 11000lbs is engineered to handle everything from compact sedans to full-size trucks and SUVs. With an 11,000 lb lifting capacity, clearfloor design, and dual hydraulic chain-drive cylinders, this auto lift is built for busy shops that demand safety, durability, and efficiency.
To help you make an informed purchase decision, we have documented every specification, safety feature, and installation requirement below. Whether you run an independent garage, tire shop, or fleet maintenance facility, this car hoist delivers professional-grade performance at an affordable price point.
⭐ Why Choose the ME 11000lbs Two Post Lift? (Key Differentiators)
What makes this lift stand out from competing auto lifts in the same price range? The ME 11000lbs two post lift combines commercial-grade construction with thoughtful design features that improve shop productivity.
Here is why shop owners choose the ME 11000lb lift:
| Feature | Benefit |
|---|---|
| 11,000 lb lifting capacity | Safely lifts full-size trucks, vans, and heavy SUVs with margin to spare |
| Clearfloor (overhead) design | No floor plates to trip over – clean bay for rolling jacks and creepers |

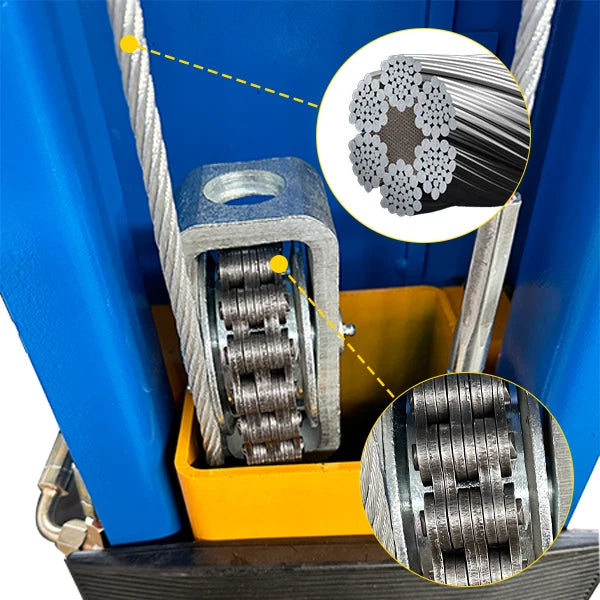

| Dual hydraulic chain-drive cylinders | Smooth, synchronized lifting with reduced maintenance |
| Symmetric arm configuration | Balanced lifting for heavier vehicles with proper weight distribution |
| 220V single phase power | No expensive three-phase electrical conversion needed |
| Q235 + Q245 steel construction | Industrial-grade materials for daily commercial use |
Consequently, one ME 11000lb two post lift can service 95% of daily customer vehicles, eliminating the need for multiple lifts in a single bay.
📏 Technical Specifications (For Perfect Fitment)
To ensure the ME auto lift fits your shop layout and vehicle mix, review these complete specifications:
| Parameter | Measurement |
|---|---|
| Model | ME-LM110S / ME-M115S |

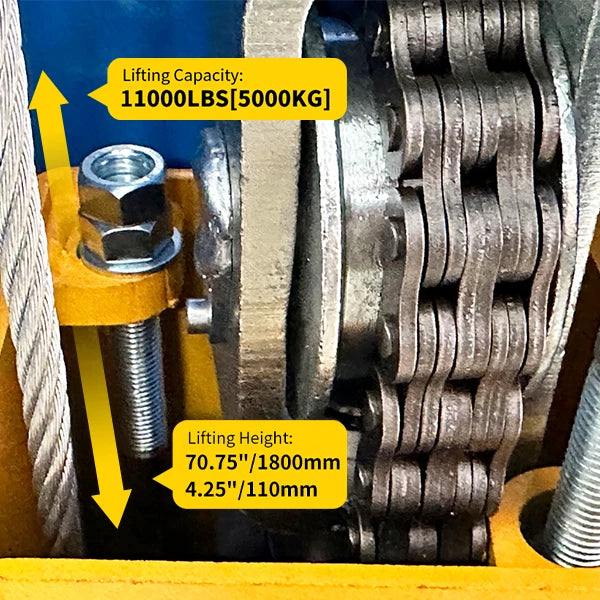

| Lifting Capacity | 11,000 lbs (5,000 kg) |
| Lift Type | 2 Post, Symmetric, Clearfloor |
| Drive System | Dual hydraulic chain-drive cylinders |
| Power Requirement | 220V / 240V, Single Phase, 60Hz |
| Motor Horsepower | 3.0 – 3.5 HP |

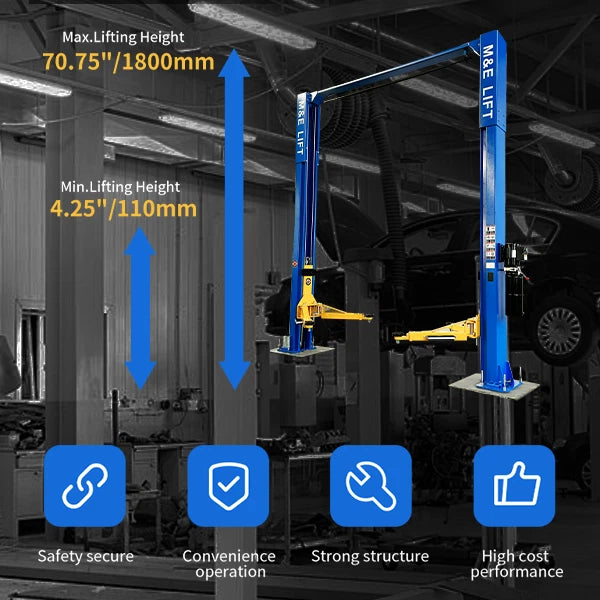

| Lifting Height | 70" – 72" (approximate) |
| Minimum Pad Height | 3.5" – 4" |
| Arm Configuration | Symmetric (even reach front and rear) |
| Steel Material | Q235 and Q245 industrial grade |
| Pad Type | Screw-on pad with extension adapters (+100mm) |
⚡ Electrical & Power System
For fast installation and reliable daily operation, the ME 11000lb car lift runs on standard shop power:
| Electrical Specification | Detail |
|---|---|
| Voltage | 220V / 240V |
| Frequency | 60Hz |
| Phase | Single Phase |
| Motor Type | Top level hydraulic system |
| Recommended Breaker | 30A dedicated circuit |
| Control System | Push-button operation with manual lowering lever |
Additionally, the power unit includes:
-
✅ Built-in overload protection
-
✅ Smooth hydraulic operation
-
✅ Manual lowering capability for emergency descent
Furthermore, the clearfloor design routes hydraulic lines overhead, keeping hoses off the floor and eliminating trip hazards.
🔒 Safety Features (Engineered for Shop Use)
When lifting 11,000 lbs, safety is non-negotiable. The ME two post lift includes multiple safety systems:
| Safety Feature | How It Works |
|---|---|
| Mechanical safety locks | Engages at regular intervals; positive engagement prevents unexpected descent |
| Dual hydraulic cylinders | Chain-drive design provides synchronized lifting |
| Screw-on pad with extensions | Secure vehicle contact points; +100mm adapters included |
| Heavy-duty steel construction | Q235 and Q245 industrial-grade materials |
| Overhead hydraulic lines | No floor obstructions – reduces trip hazards |
Consequently, this lift is designed to meet professional safety standards for daily shop use.
🔧 What's Included with the ME 11000lb Lift?
When your ME two post auto lift arrives, the complete kit includes:
| Component | Quantity |
|---|---|
| Left column (driver side) | 1 |
| Right column (passenger side) | 1 |
| Hydraulic power unit (220V single phase) | 1 |
| Carriages with lifting arms | 2 sets |
| Dual hydraulic chain-drive cylinders | 2 |
| Hydraulic hoses (overhead routing kit) | 1 set |
| Screw-on lift pads | 4 |
| Extension support adapters (+100mm) | 4 |
| Anchor bolts (concrete expansion type) | 8 |
| Mounting hardware kit | 1 |
| Manual lowering lever assembly | 1 |
| Installation & user manual | 1 |
Additionally, the lift is constructed from Q235 and Q245 steel, providing industrial-grade durability for years of daily use.
🧱 Concrete Requirements (Critical Installation Guide)
The most common cause of lift failure is inadequate concrete. Follow this guide before ordering:
| Requirement | Specification |
|---|---|
| Concrete PSI | Minimum 3,000 PSI |
| Concrete Thickness | Minimum 6 inches (6" required) |
| Floor Flatness | Level within 1/8" over 6 feet |
| Reinforcement | Rebar or wire mesh recommended |
| Cure Time | Fully cured (28+ days minimum) |
⚠️ Critical Warning:
Concrete thickness must be at least 6" with a 3000 PSI rating. Failure to install this lift on proper concrete could result in serious injury or death! It is the customer's responsibility to verify concrete thickness and strength before purchase and installation.
❌ Do NOT Install On:
-
❌ Asphalt or blacktop (will crack and settle under load)
-
❌ Cracked, spalling, or patched concrete
-
❌ Concrete expansion seams (control joints) under columns
-
❌ Elevated floors without structural engineer approval
-
❌ Outdoors without weather protection
-
❌ Thin slabs (less than 6 inches)
Furthermore, always have a professional verify your floor's suitability before installation.
📐 Lift Capacity & Vehicle Compatibility
Understanding lift capacity is essential for safe operation. Here is what you need to know about the ME 11000lb two post lift:
What Can You Lift?
| Vehicle Type | Typical Weight | Compatible? |
|---|---|---|
| Compact cars (Honda Civic, Toyota Corolla) | 2,800 – 3,200 lbs | ✅ Yes |
| Midsize sedans (Camry, Accord) | 3,300 – 3,600 lbs | ✅ Yes |
| Full-size sedans (Charger, Taurus) | 4,000 – 4,500 lbs | ✅ Yes |
| Small SUVs (CR-V, RAV4) | 3,500 – 4,000 lbs | ✅ Yes |
| Large SUVs (Suburban, Expedition) | 5,500 – 6,500 lbs | ✅ Yes |
| Half-ton trucks (F-150, Silverado 1500) | 4,500 – 5,500 lbs | ✅ Yes |
| Heavy half / 3/4 ton trucks (F-250, Ram 2500) | 6,500 – 8,000 lbs | ✅ Yes |
Understanding Per-Arm Weight Limits
Important safety note: Even though the total lift capacity is 11,000 lbs, each arm has its own weight limit. For a symmetrical two post lift, the weight distribution is approximately:
-
Front axle weight typically 55-60% of vehicle weight
-
Rear axle weight typically 40-45% of vehicle weight
-
Each front arm supports approximately 30% of total weight
-
Each rear arm supports approximately 20-22% of total weight
Many manufacturers recommend not exceeding 75% of a lift's rated capacity to maintain safety margins.
🛠 Site Selection & Preparation Guide
To avoid installation delays, follow this pre-installation checklist:
✅ Required Shop Conditions:
| Requirement | Specification |
|---|---|
| Ceiling Height | Minimum 12 feet (144 inches) |
| Bay Width | Minimum 12 feet |
| Bay Depth | Minimum 18 feet |
| Electrical | 220V, 30A dedicated circuit, single phase |
| Flooring | Level concrete, 6" thick minimum, 3000 PSI minimum |
| Overhead Clearance | No obstructions (sprinklers, HVAC, conduits) |
❌ Common Installation Mistakes to Avoid:
-
❌ Installing without verifying concrete thickness
-
❌ Using undersized electrical circuit
-
❌ Ignoring overhead obstructions
-
❌ Skipping anchor bolt torque verification
-
❌ Failing to bleed air from hydraulic system
🔄 Maintenance Schedule (For Long Lift Life)
An auto lift is a major investment. Protect it with this maintenance schedule:
| Frequency | Task |
|---|---|
| Daily | Inspect cables and chains for wear; check hydraulic fluid level; test safety locks |
| Weekly | Check anchor bolt torque; inspect lifting pads for wear |
| Monthly | Inspect hydraulic hoses for leaks or cracks; clean power unit cooling fins |
| Quarterly | Test safety lock engagement; lubricate carriage slides |
| Annually | Replace hydraulic fluid (AW-32); professional inspection recommended |
Consequently, regular maintenance prevents unexpected downtime and extends lift life to 15+ years.
🚀 Who Should Buy the ME 11000lb Two Post Lift?
In summary, the ME 11000lb auto lift is the right choice for:
| Shop Type | Why It Fits |
|---|---|
| Independent auto repair | 11,000 lb capacity covers 95% of daily vehicles |
| Tire and alignment shop | Clearfloor design allows easy access for rolling equipment |
| Quick lube / service center | Fast lifting for routine maintenance |
| Used car dealership | Reconditioning and inspection lift |
| Home garage enthusiast | Professional-grade lift for serious hobbyists (with adequate concrete) |
| Fleet maintenance | Light-duty truck and van service |
However, if you regularly service heavy-duty trucks (F-350, Ram 3500, commercial box trucks), consider a 15,000 lb or higher capacity lift.
📋 Installation Checklist (For Your Installer)
To ensure a safe and compliant installation, follow this checklist:
-
Verify concrete thickness (6" minimum) and PSI (3000+ minimum)
-
Confirm ceiling height (12 ft minimum)
-
Install dedicated 220V, 30A circuit with breaker lockout
-
Mark column locations per installation manual
-
Drill anchor holes (use hammer drill with correct bit size)
-
Clean holes completely (vacuum + blow out dust)
-
Set columns plumb (use laser level)
-
Torque anchor bolts to manufacturer specification
-
Install overhead hydraulic hoses (clearfloor routing)
-
Fill hydraulic fluid (AW-32, approximately 3-4 gallons)
-
Bleed air from hydraulic system (cycle lift 3-5 times unloaded)
-
Perform safety lock test at every 6" of travel
-
Test full load with known vehicle weight (8,000-10,000 lbs recommended)
Pro tip: Consider professional installation for warranty compliance and safety verification.
🏆 Final Verdict: Is the ME 11000lb Lift Right for Your Shop?
To summarize everything above: The ME 2 Post Lift 11000lbs delivers commercial-grade lifting capacity with a clearfloor design that keeps bay floors clean and safe. The 11,000 lb capacity handles everything from compact cars to 3/4 ton trucks, while the dual hydraulic chain-drive system provides smooth, reliable operation.
The bottom line? If you need a versatile two post lift that services the majority of daily customer vehicles without occupying excessive floor space, the ME 11000lb auto lift is an excellent value choice.
The key requirement to verify before purchase: Your concrete floor must be 6 inches thick minimum with 3000 PSI rating – this is critical for safe installation and operation.
Ready to equip your shop with professional lifting equipment? Verify your concrete thickness and ceiling height, then click Add to Cart to secure industry-leading pricing on the ME two post lift.
